Hardware

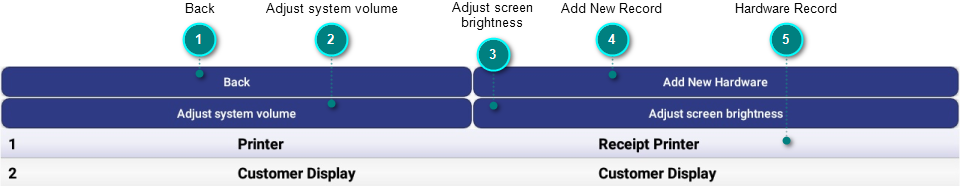

Hardware Maintenance

Hardware Maintenance allows you to insert, update and delete your hardware definitions.

	Back
	Press Back to return to the GoPOS Home Menu.

Adjust system volume

Press on this button to adjust the APOS system volume setting. A pop-up window will be displayed to allow you to press on the + to increase and - to decrease the volume.

Adjust screen brightness

Press on this button to adjust the APOS screen brightness setting. A pop-up window will be displayed to allow you to press on the + to increase and - to decrease the brightness.

Add New Record

Press on this button to add a new Hardware record. Select the hardware type you wish to add and press Continue. Press anywhere outside the select hardware type window to close the window and cancel.

Receipt Printer

	Hardware Id
	Display only. When adding new records, the next available Id value will be displayed.

	Caption
	Enter the name or description of the hardware. Required field. Max 25 characters.

Model

58mm	Internal connection, no parameters required (AP01, AP02, and AP04).
80mm	Internal connection, no parameters required (AP03 and AP05).
Optima OPT P100	Ethernet connection, IP and Port required.
Optima OPT P200	Ethernet connection, IP and Port required.
Optima OPT P250	Ethernet connection, IP and Port required.
Optima OPT P300	Ethernet connection, IP and Port required.
Optima OPT P822	Ethernet connection, IP and Port required.
Optima OPT KP150	Ethernet connection, IP and Port required.
TM88 or Compatible	Ethernet connection, IP and Port required.
TMU220 or Compatible	Ethernet connection, IP and Port required.

Connection

Internal	No communication settings are required.
Serial	Port number, speed, number of stop bits, number of data bits (7 or 8) and parity (none, even or odd) are required.
Ethernet	IP address and Port are required.
USB	No communication settings are required.

Language

This option allows you to specify the language used to define the printer protocol and code page of the selected printer. Select one of the supported languages.

	Options
	Select one or more of the following hardware options:

Use Second Names Select this option if you wish to use the Department, Product and Modifier second names. This allows you to display transactions on the selected printer using a second description. You may send descriptions in a different language by enabling this option and selecting one of the supported printer languages.

	Text
	Enter the text you wish to display on the receipt header or receipt footer. Max 80 characters.

	Justify
	Select one of the support text justifications. Left, Center or Right justification.

Font

Select one of the supported printer fonts.

Font A Standard

Font A Double Width

Font A Double Height

Font A Double Width and Double Height

Font B Standard

Font B Double Width

Font B Double Height

Font B Double Width and Double Height

	Bold
	press on the check box if you wish to display the text in bold.

	Back
	Press "Back" to close the window and return to the previous screen without saving any changes.

	Save
	Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

	Hide
	Press "Hide" to hide the android keyboard when displayed.

	Delete Header
	Press on this button to delete the currently selected print header row.

	Insert Header
	Press on this button to add a new print header row. Print Headers may have one or more message lines. Each line can be displayed in its own font and may be printed in Bold, Underline and either in left, center or right justification.

	Delete Footer
	Press on this button to delete the currently selected print footer row.

	Insert Footer
	Press on this button to add a new print footer row. Print Footers may have one or more message lines. Each line can be displayed in its own font and may be printed in Bold, Underline and either in Left, Centre or Right justification.

	Kitchen Printer

	Hardware Id
	Display only. When adding new records, the next available Id value will be displayed.

	Caption
	Enter the name or description of the hardware. Required field. Max 25 characters.

Model

58mm	Internal connection, no parameters required (AP01, AP02, and AP04).
80mm	Internal connection, no parameters required (AP03 and AP05).
Optima OPT P100	Ethernet connection, IP and Port required.
Optima OPT P200	Ethernet connection, IP and Port required.
Optima OPT P250	Ethernet connection, IP and Port required.
Optima OPT P300	Ethernet connection, IP and Port required.
Optima OPT P822	Ethernet connection, IP and Port required.
Optima OPT KP150	Ethernet connection, IP and Port required.
TM88 or Compatible	Ethernet connection, IP and Port required.
TMU220 or Compatible	Ethernet connection, IP and Port required.
Optima OPT-KV	Ethernet connection, IP and Port required. (Kitchen Video Display)

Connection

Internal	No communication settings are required.
Serial	Port number, speed, number of stop bits, number of data bits (7 or 8) and parity (none, even or odd) are required.
Ethernet	IP address and Port are required.
USB	No communication settings are required.

Language

This option allows you to specify the language used to define the printer protocol and code page of the selected printer. Select one of the supported languages.

Options

Select one or more of the following hardware options:

Use Second Names

Select this option if you wish to use the Department, Product and Modifier second names. This allows you to display transactions on the selected printer using a second description. You may send descriptions in a different language by enabling this option and selecting one of the supported printer languages.

	Text
	Enter the text you wish to display on the receipt header or receipt footer. Max 80 characters.

	Justify
	Select one of the support text justifications. Left, Center or Right justification.

Font

Select one of the supported printer fonts.

Font A Standard

Font A Double Width

Font A Double Height

Font A Double Width and Double Height

Font B Standard

Font B Double Width

Font B Double Height

Font B Double Width and Double Height

	Bold
	press on the check box if you wish to display the text in bold.

	Back
	Press "Back" to close the window and return to the previous screen without saving any changes.

	Save
	Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

	Hide
	Press "Hide" to hide the android keyboard when displayed.

	Delete Header
	Press on this button to delete the currently selected print header row.

	Insert Header
	Press on this button to add a new print header row. Print Headers may have one or more message lines. Each line can be displayed in its own font and may be printed in Bold, Underline and either in left, center or right justification.

	Delete Footer
	Press on this button to delete the currently selected print footer row.

	Insert Footer
	Press on this button to add a new print footer row. Print Footers may have one or more message lines. Each line can be displayed in its own font and may be printed in Bold, Underline and either in Left, Centre or Right justification.

	Customer Display

	Hardware Id
	Display only. When adding new records, the next available Id value will be displayed.

	Caption
	Enter the name or description of the hardware. Required field. Max 25 characters.

Model

2 Lines	Internal connection (AP03).
4 Lines	Internal connection (AP02 and AP04).
OSI CD7	USB connection (Pole Display).
Internal Screen	Internal connection (AP05, AP06).
External Ethernet	Ethernet connection, IP and Port required.
External Screen	USB connection.

When GoPOS is in register mode, the AP05 customer display is split in two sections. One section is used to display the current transaction and the other section is used to display advertisements. To use the advertisement feature, you need to copy the images you want to display in the AP05 slide show folder.

ØCreate your advertisement image (bmp, gif, tif, png, jpg, etc) with recommended size of 512x600. Different sizes will work but may not display properly.

ØCopy image to a USB thumb drive.

ØInsert thumb Drive into USB port at back of AP05.

ØActivate Android Bars from GoPOS and open up Android File Manager.

ØNavigate to the thumb drive and select the image or images you wish to copy. Press in the check box to the left of the image to select one or more images. You may also select all files in the current folder by pressing on Select ALL in the Actions menu.

ØNavigate to the AP05 slide show folder by pressing Home, Internal Memory, opos, slideshow. Press Actions in the top menu and press Copy Selection Here to copy the file or files.

When you are in GoPOS Register Mode, the system will cycle through and display each image you copied into the AP05 slide show folder.

Connection

Internal	No communication settings are required.
Serial	Port number, speed, number of stop bits, number of data bits (7 or 8) and parity (none, even or odd) are required.
Ethernet	IP address and Port are required.
USB	No communication settings are required.

Contrast

Press on this button to adjust the customer display contrast setting. A pop-up window will be displayed to allow you to press on the + to increase and - to decrease the contrast.

	Back
	Press "Back" to close the window and return to the previous screen without saving any changes.

	Save
	Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

	Hide
	Press "Hide" to hide the android keyboard when displayed.

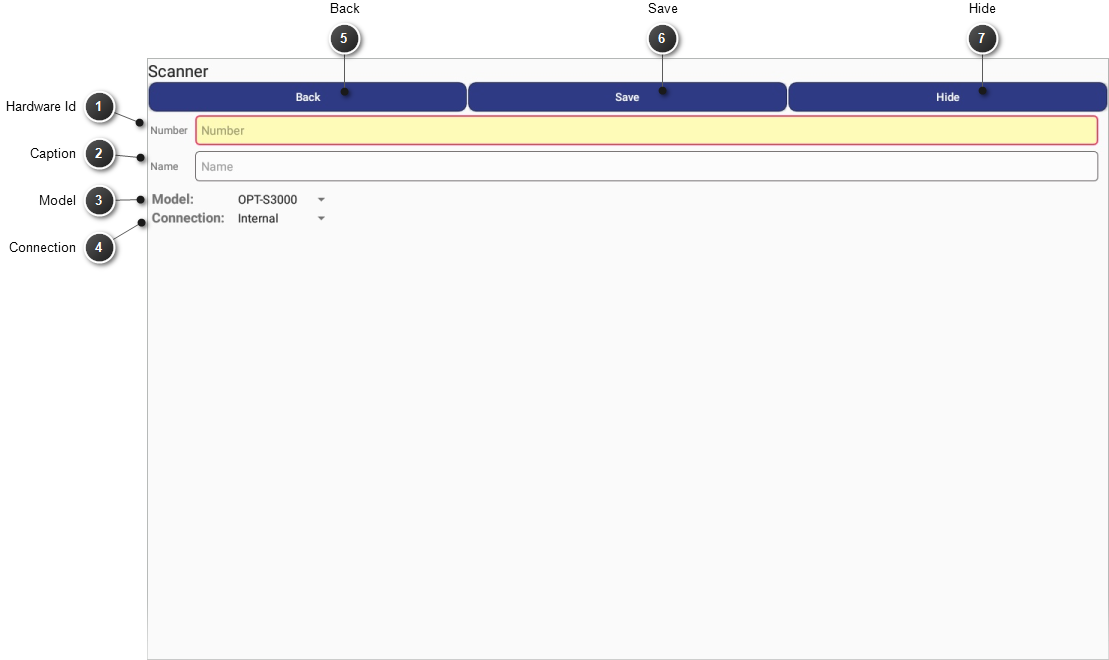

	Scanner

	Hardware Id
	Display only. When adding new records, the next available Id value will be displayed.

	Caption
	Enter the name or description of the hardware. Required field. Max 25 characters.

Model

All supported scanner models below are plug and play but must be configured to send the carriage return, with or without a check digit.

However, if the scanner is set up to not send check digits, then bar codes in the system need to be created without check digits and Setting 31 - "Validate Check Digit for Scanned Products" must be disabled. Please refer to the manufacturers manual or website for setup instructions and scan-able setup bar codes specific to your scanner.

When dealing with product SKUs, the software automatically adds leading zeros, but those zeros are ignored when performing a search. This means that the scanner will still work if it sends or does not send leading zeros.

Datalogic Magellan 8500 Serial connection, Port Speed, Number of Data Bits, Number of Stop Bits, Parity Bits and Port Number required.

No setup is required for the following scanners.

Optima OPT S3000

Optima OPT S3500

Optima OPT S4500

Honeywell MS954

Honeywell MK7580

Zebra DS9308

Connection

Internal	No communication settings are required.
Serial	Port number, speed, number of stop bits, number of data bits (7 or 8) and parity (none, even or odd) are required.
Ethernet	IP address and Port are required.
USB	No communication settings are required.

	Back
	Press "Back" to close the window and return to the previous screen without saving any changes.

	Save
	Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

	Hide
	Press "Hide" to hide the android keyboard when displayed.

	Payment Terminal

	Hardware Id
	Display only. When adding new records, the next available Id value will be displayed.

	Caption
	Enter the name or description of the hardware. Required field. Max 25 characters.

Model

Once defined in hardware maintenance Payment terminals must be linked to one of the defined Tenders. Additional Merchant Copy receipts may be printed if Setting 62 - Print Merchant Copy has been enabled.

Global Payments Ingenico 5000	Ethernet connection, IP and Port required.
Moneris	Ethernet connection, IP and Port required.
PayFacto	Internal Connection, URL, API Key, Company Number, Merchant Number and Terminal Number required.
DC Direct (U.S.A. only)	Ethernet connection, IP and Merchant Number are required. Ethernet Port is fixed to port number 80. Access to the Batch Summary (Report 403) and Batch Close (Report 404) functionality is available from this window or can be accessed through the Reports Menu icon.
Pax	Ethernet connection, IP and Port are required. Ethernet Port factory default is port number 10009.
TD Move/Desk 5000	Ethernet connection, IP and Port required.
Fincimex	Ethernet connection, IP and Port are required. Default Port Number 9100. Credit/Debit payment tenders should be defined.

Connection

Internal	No communication settings are required.
Serial	Port number, speed, number of stop bits, number of data bits (7 or 8) and parity (none, even or odd) are required.
Ethernet	IP address and Port are required.
USB	No communication settings are required.

	Back
	Press "Back" to close the window and return to the previous screen without saving any changes.

	Save
	Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

	Hide
	Press "Hide" to hide the android keyboard when displayed.

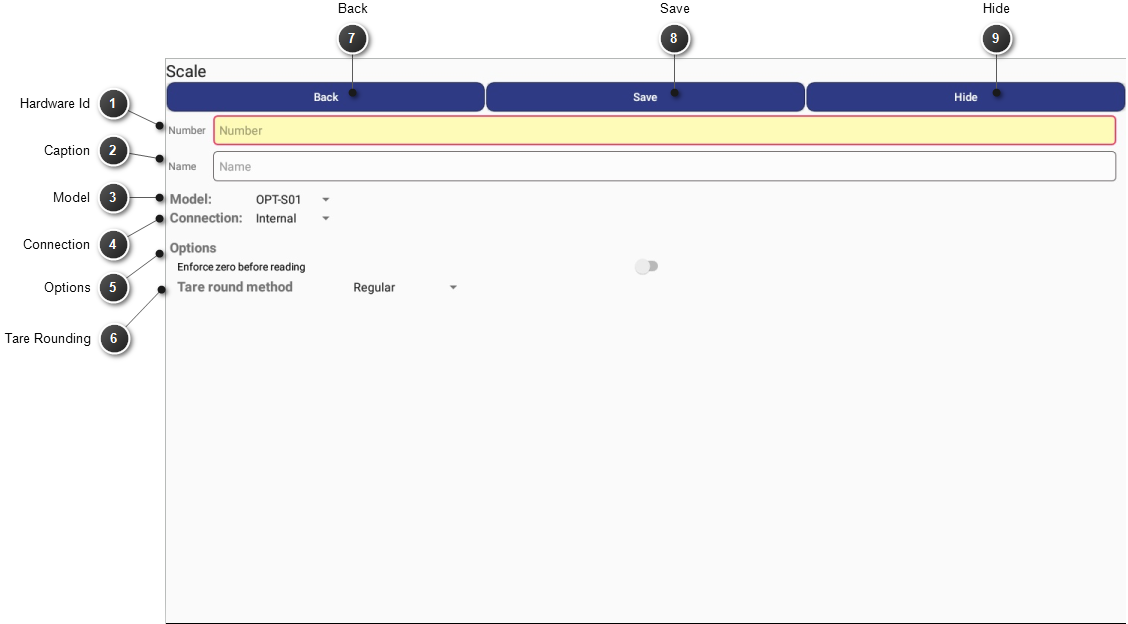

	Scale

	Hardware Id
	Display only. When adding new records, the next available Id value will be displayed.

	Caption
	Enter the name or description of the hardware. Required field. Max 25 characters.

Model

Optima OPT-S01	Serial connection, Port Speed, Number of Data Bits, Number of Stop Bits, Parity Bits and Port Number required.
Virtual	Internal connection, no parameters required. User will be prompted to enter weight.
Brecknell	Serial connection, Port Speed and Port Number required. Number of Data Bits fixed to 8. Number of Stop Bits fixed to 1. Parity Bits fixed to None. Port Number should be set to 0 for the AP05 and port 1 for the AP04. In either case, the scale should be plugged into the 6 pin RS232 port in the back of the unit. The protocol to use is the ECR-SCP02 (factory default).
Datalogic Magellan 8500	Internal connection, no parameters required. The built in Datalogic Magellan 8500 scanner must be defined for this unit to be recognized by GoPOS.
CASS PD 11	Serial connection, Port Speed, Number of Data Bits, Number of Stop Bits, Parity Bits and Port Number required. The CAS PD 11 default baud rate is 9600, 7 bits, even parity, and 1 stop bit. The protocol to use is ECR-TYPE 4 as per CAS PD-II manual. Serial DB-9 and Serial DB-25 are supported with proper pin-out information.
Optima OPT-6X	USB connection, no parameters required.

Connection

Internal	No communication settings are required.
Serial	Port number, speed, number of stop bits, number of data bits (7 or 8) and parity (none, even or odd) are required.
Ethernet	IP address and Port are required.
USB	No communication settings are required.

Options

Select one or more of the following options:

Enforce Zero

Select this option to force the scale back to zero before reading the next product weight.

	Tare Rounding
	Select one of the following rounding options. Regular, Round Up or Truncate.

	Back
	Press "Back" to close the window and return to the previous screen without saving any changes.

	Save
	Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

	Hide
	Press "Hide" to hide the android keyboard when displayed.

	Fiscal Device

	Hardware Id
	Display only. When adding new records, the next available Id value will be displayed.

	Name
	Display only. When adding new records, the next available Id value will be displayed.

Model

YCS PR	Internal connection, POS Id, which is the unique identifier provide by YCS PR, the YCS Fiscal API URL and the POS Password are required.
Factura Mx	Internal connection, Merchant Fiscal Id, API URL, API User Name, API Password and Terminal Id are required.

	Back
	Press "Back" to close the window and return to the previous screen without saving any changes.

	Save
	Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

	Hide
	Press "Hide" to hide the android keyboard when displayed.

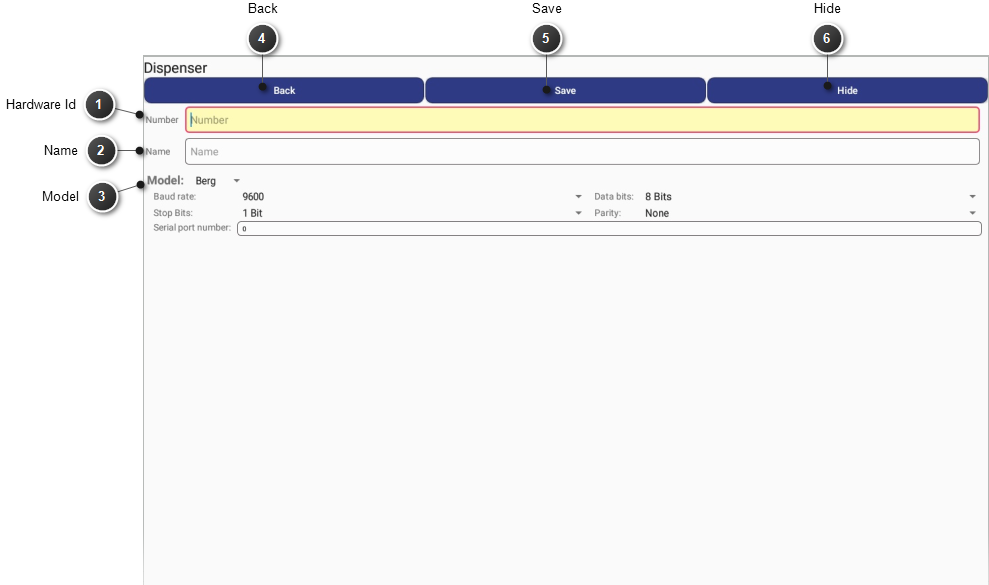

Dispenser

	Hardware Id
	Display only. When adding new records, the next available Id value will be displayed.

	Name
	Display only. When adding new records, the next available Id value will be displayed.

Model

Berg	Serial connection, Port Speed, Number of Data Bits, Number of Stop Bits, Parity Bits and Port Number required.

	Back
	Press "Back" to close the window and return to the previous screen without saving any changes.

	Save
	Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

	Hide
	Press "Hide" to hide the android keyboard when displayed.

	Hardware Record
	Each record will be displayed as an individual row. To edit or view the record details, press and hold on one of the rows.
