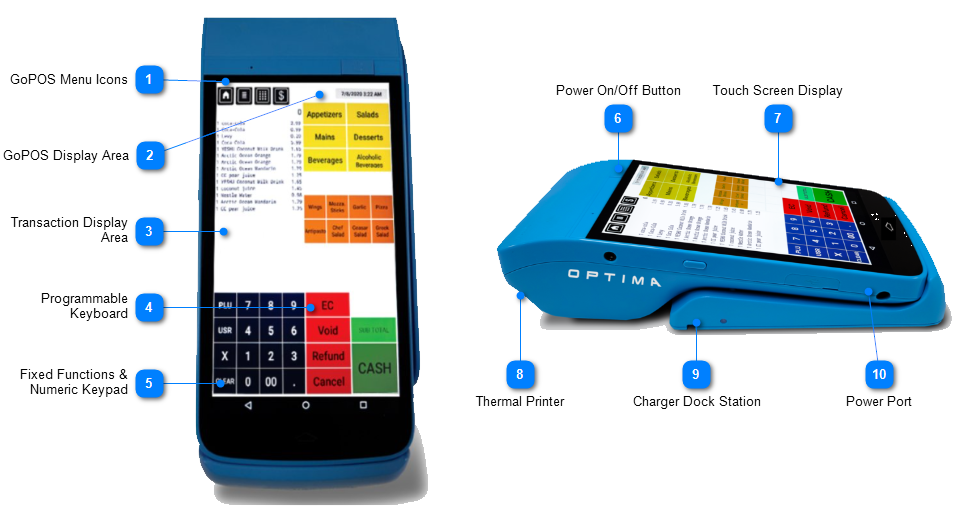

GoPOS Menu Icons

The Menu Icons allow you to navigate between screens and provide quick function access.

GoPOS Display Area

The display area is used by GoPOS to display information on the current task, settings or modes of operation.

Transaction Display Area

The transaction display area will display each transaction, as well as any linked or ancillary transactions, as they are entered by the user. Transaction lines in this display area may be selected and highlighted by pressing directly on the line item. Highlighted line items may be removed by pressing the programmable "Delete" key .

Programmable Keyboard

The keyboard touch screen display is 100% configurable. This model can be easily configured to support keyboards with 12, 24 and 48 keys displayed in portrait mode. There is however, no actual limitations to the number of programmable keys displayed on any of the APOS units.

Fixed Functions & Numeric Keypad

The fixed functions and numeric keypad may be hidden by setting Option 56 - "Hide Numeric Keypad" to true. The Transaction display area will be expanded to include this area when hidden.

Please note that many of the fixed functions are required to enter and complete transactions. It is assumed that if the fixed numeric keypad is hidden, the fixed function keys

required by the user will be added to the programmable keyboard in the Keys Maintenance module.

Power On/Off Button

Press and Hold the power button to turn the unit on or off. When turning the Apos unit off, a pop up window will allow you to "Power off" or "Reboot" the unit. Press anywhere outside of the pop-up window to cancel the operation.

Quickly pressing and releasing the on/off button will place the unit in sleep mode and display a blank screen. All of the touch screen functions will be disabled allowing you to wipe down the screen area. Pressing the power on/off switch while in sleep mode, will turn the unit and touch screen functionality back on.

Touch Screen Display

6" Touch Screen (720 x 1280)

Thermal Printer

2 1/4" (58mm) Thermal Printer

The APOS series thermal printers are equipped with an easy loading mechanism that provides fast paper roll replacement.

1. Press or pull (according to the model) on the printer release mechanism to unlock the lid.

2. Lift the lid.

3. Make sure that the printable part of the roll is facing the thermal printer. Usually this is the outside part of the roll. If you are unsure you can rub your fingernail on both sides of the paper. The side that leaves a mark will be the correct side.

4. Load the paper roll into the housing. The end of the roll must extend past the thermal printer and out of the unit.

5. Close the lid ensuring that the paper is properly centred.

Warning: DO NOT PULL ON THE PAPER WHEN THE LID IS CLOSED! THIS MAY CAUSE PERMANENT DAMAGE TO THE PRINTER.

Charger Dock Station

Place the unit in the docking station to recharge the battery. The unit or may also be charged by plugging the supplied 9V 2A power cord directly into the power port.

Power Port

The unit or may be charged using the docking station or by plugging the supplied 9V 2A power cord directly into the power port. Equipped with a built in 7.4V 3AH battery for operations on the go.

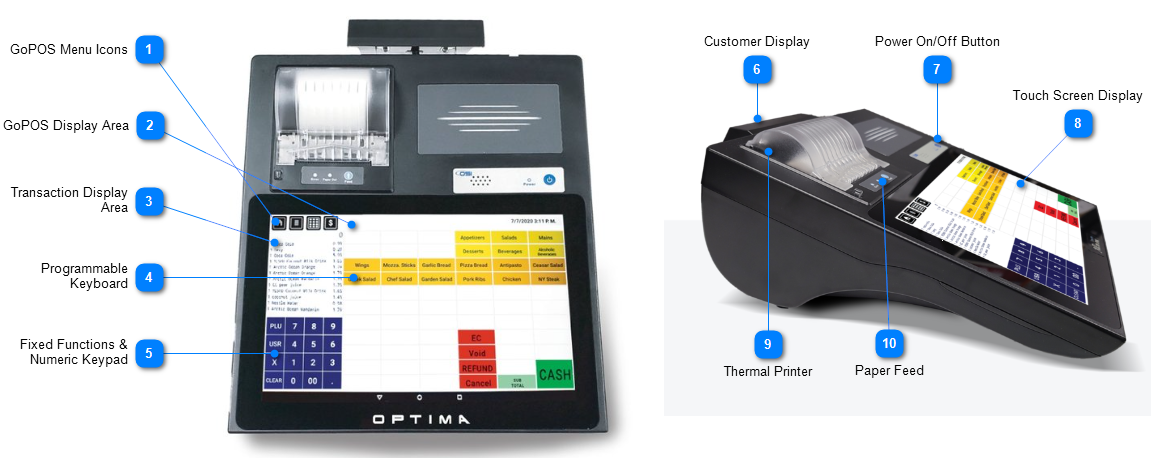

GoPOS Menu Icons

The Menu Icons allow you to navigate between screens and provide quick function access.

GoPOS Display Area

This area is used by GoPOS to display information on the current task, settings or modes of operation.

Transaction Display Area

The transaction display area will display each transaction, as well as any linked or ancillary transactions, as they are entered by the user. Transaction lines in this display area may be selected and highlighted by pressing directly on the line item. Highlighted line items may be removed by pressing the programmable "Delete" key .

Programmable Keyboard

The keyboard touch screen display is 100% configurable. This model can be easily configured to support keyboards with 12, 24 and 48 keys displayed in portrait mode. There is however, no actual limitations to the number of programmable keys displayed on any of the APOS units.

Fixed Functions & Numeric Keyboard

The fixed functions and numeric keypad may be hidden by setting Option 56 - "Hide Numeric Keypad" to true. The Transaction display area will be expanded to include this area when hidden.

Please note that many of the fixed functions are required to enter and complete transactions. It is assumed that if the fixed numeric keypad is hidden, the fixed function keys

required by the user will be added to the programmable keyboard in the Keys Maintenance module.

Thermal Printer

2 1/4" (58 mm) Thermal Printer without cutter. Printing Speed - 150 mm/s.

The APOS series thermal printers are equipped with an easy loading mechanism that provides fast paper roll replacement.

1. Lift the printer release mechanism at the back of the unit to unlock the lid.

2. Lower the lid.

3. Make sure that the printable part of the roll is facing the thermal printer. Usually this is the outside part of the roll. If you are unsure you can rub your fingernail on both sides of the paper. The side that leaves a mark will be the correct side.

4. Load the paper roll into the housing. The end of the roll must extend past the thermal printer and out of the unit.

5. Close the lid ensuring that the paper is properly centred. The unit will continuously beep until the paper is properly installed.

6. Rip off any excess paper once properly installed. You may advance the paper by pressing the paper feed button on the right hand side of the unit.

Warning: DO NOT PULL DIRECTLY ON THE PAPER WHEN THE PRINTER IS PRINTING! THIS MAY CAUSE PERMANENT DAMAGE TO THE PRINTER.

Customer Display

4 line color LCD customer display

Power On/Off Button

Press and Hold the power button to turn the unit on or off. When turning the Apos unit off, a pop up window will allow you to "Power off" or "Reboot" the unit. Press anywhere outside of the pop-up window to cancel the operation.

Quickly pressing and releasing the on/off button will place the unit in sleep mode and display a blank screen. All of the touch screen functions will be disabled allowing you to wipe down the screen area. Pressing the power on/off switch while in sleep mode, will turn the unit and touch screen functionality back on.

A green light next to the Power On/Off button at the front of the unit indicates that the unit is plugged into a power source. A red light to the left of the green light indicates that the unit is charging.

Please note that there is an additional power on/off switch at the back of the unit. Turning this switch off, will disable the Power On/Off button at the front of the unit.

Paper Feed

Pressing the paper feed button on the right hand side of the unit will advance the paper roll. Each press of the button will advance the paper by one line.

Touch Screen Display

8" Touch Screen (800 x 1280)

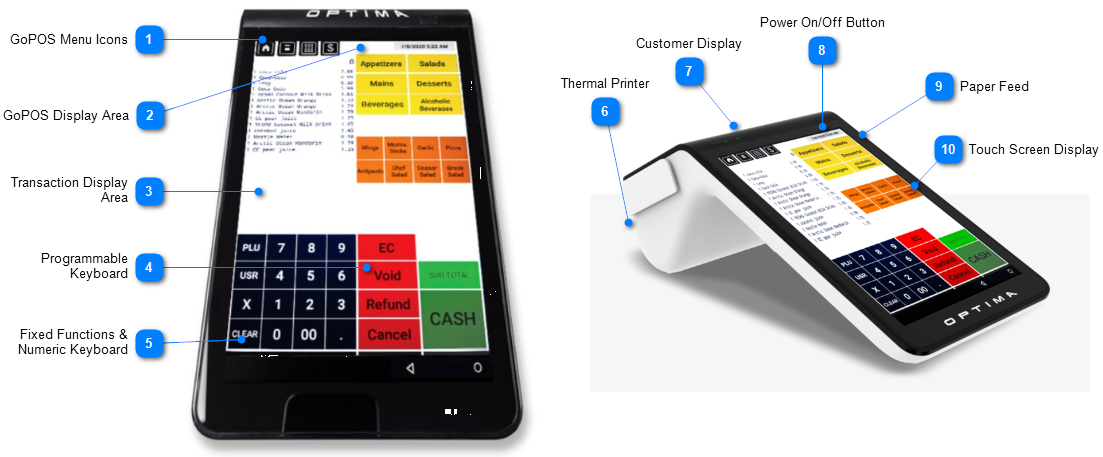

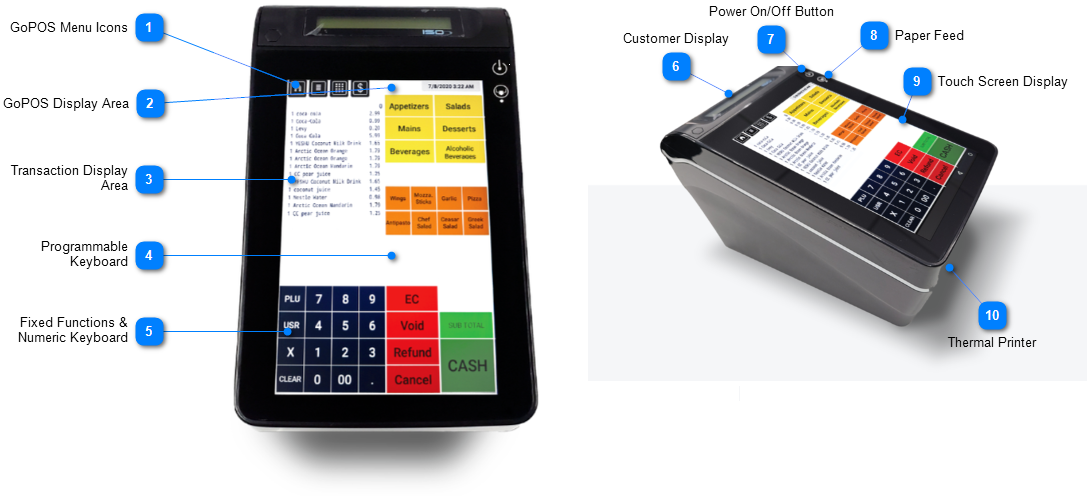

GoPOS Menu Icons

The Menu Icons allow you to navigate between screens and provide quick function access.

GoPOS Display Area

This area is used by GoPOS to display information on the current task, settings or modes of operation.

Transaction Display Area

The transaction display area will display each transaction, as well as any linked or ancillary transactions, as they are entered by the user. Transaction lines in this display area may be selected and highlighted by pressing directly on the line item. Highlighted line items may be removed by pressing the programmable "Delete" key .

Programmable Keyboard

The keyboard touch screen display is 100% configurable. This model can be easily configured to support keyboards with 12, 24 and 48 keys displayed in portrait mode. There is however, no actual limitations to the number of programmable keys displayed on any of the APOS units.

Fixed Functions & Numeric Keyboard

The fixed functions and numeric keypad may be hidden by setting Option 56 - "Hide Numeric Keypad" to true. The Transaction display area will be expanded to include this area when hidden.

Please note that many of the fixed functions are required to enter and complete transactions. It is assumed that if the fixed numeric keypad is hidden, the fixed function keys

required by the user will be added to the programmable keyboard in the Keys Maintenance module.

Customer Display

2 line 32 x 144 LCD customer display. (800 x 1280)

Power On/Off Button

Press and Hold the power button to turn the unit on or off. When turning the Apos unit off, a pop up window will allow you to "Power off" or "Reboot" the unit. Press anywhere outside of the pop-up window to cancel the operation.

Quickly pressing and releasing the on/off button will place the unit in sleep mode and display a blank screen. All of the touch screen functions will be disabled allowing you to wipe down the screen area. Pressing the power on/off button while in sleep mode, will turn the unit and touch screen functionality back on.

Please note that there is an additional power on/off switch at the back of the unit. Turning this switch off, or unplugging the unit, will disable the Power On/Off switch at the front of the unit.

Paper Feed

Pressing the paper feed button will advance the paper roll. Each press of the button will advance the paper by one line.

Touch Screen Display

8" Touch Screen

Thermal Printer

3 1/8" (80mm) Thermal Printer & Auto-cutter. Printing Speed - 150 mm/s.

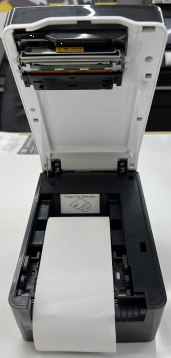

The APOS series thermal printers are equipped with an easy loading mechanism that provides fast paper roll replacement.

1. Squeeze the printer release mechanism at the front of the unit to unlock the lid.

2. Lift the lid.

3. Make sure that the printable part of the roll is facing the thermal printer. Usually this is the outside part of the roll. If you are unsure you can rub your fingernail on both sides of the paper. The side that leaves a mark will be the correct side. Most APOS-03 units come with a sticker in the paper roll housing depicting the proper roll orientation.

4. Load the paper roll into the housing. The end of the roll must extend past the thermal printer and out of the unit.

5. Close the lid ensuring that the paper is properly centred. The unit will continuously beep until the paper is properly installed.

6. The auto-cutter will cut off any excess paper once properly installed. You may advance the paper by pressing the paper feed button located below the Power On/Off button on the top right hand side of the unit.

Warning: DO NOT PULL DIRECTLY ON THE PAPER WHEN THE PRINTER IS PRINTING! THIS MAY CAUSE PERMANENT DAMAGE TO THE PRINTER.

GoPOS Menu Icons

The Menu Icons allow you to navigate between screens and provide quick function access.

GoPOS Display Area

This area is used by GoPOS to display information on the current task, settings or modes of operation.

Transaction Display Area

The transaction display area will display each transaction, as well as any linked or ancillary transactions, as they are entered by the user. Transaction lines in this display area may be selected and highlighted by pressing directly on the line item. Highlighted line items may be removed by pressing the programmable "Delete" key .

Programmable Keyboard

The keyboard touch screen display is 100% configurable. This model can be easily configured to support keyboards with 66 or 88 keys displayed in landscape mode. There is however, no actual limitations to the number of programmable keys displayed on any of the APOS units.

Fixed Functions & Numeric Keypad

The fixed functions and numeric keypad may be hidden by setting Option 56 - "Hide Numeric Keypad" to true. The Transaction display area will be expanded to include this area when hidden.

Please note that many of the fixed functions are required to enter and complete transactions. It is assumed that if the fixed numeric keypad is hidden, the fixed function keys

required by the user will be added to the programmable keyboard in the Keys Maintenance module.

Customer Display

4 line 65 x 32 adjustable LCD customer display.

Power On/Off Button

Press and Hold the power button to turn the unit on or off. When turning the Apos unit off, a pop up window will allow you to "Power off" or "Reboot" the unit. Press anywhere outside of the pop-up window to cancel the operation.

Quickly pressing and releasing the on/off button will place the unit in sleep mode and display a blank screen. All of the touch screen functions will be disabled allowing you to wipe down the screen area. Pressing the power on/off button while in sleep mode, will turn the unit and touch screen functionality back on.

If the unit is plugged into a power source, a red power light next to the Power On/Off button at the front of the unit will indicate that the unit is charging. A green light indicates the battery is fully charged.

Please note that there is an additional power on/off switch at the back of the unit. Turning this switch off, will disable the Power On/Off switch at the front of the unit.

Touch Screen Display

10" Touch Screen (1280 x 800)

Thermal Printer

2 1/4" (58 mm) Thermal Printer with Auto-cutter. Printing Speed - 150 mm/s.

The APOS series thermal printers are equipped with an easy loading mechanism that provides fast paper roll replacement.

1. Lift the printer release mechanism at the front of the unit to unlock the lid.

2. Lift the lid.

3. Make sure that the printable part of the roll is facing the thermal printer. Usually this is the outside part of the roll. If you are unsure you can rub your fingernail on both sides of the paper. The side that leaves a mark will be the correct side.

4. Load the paper roll into the housing. The end of the roll must extend past the thermal printer and out of the unit.

5. Close the lid ensuring that the paper is properly centred. The unit will continuously beep until the paper is properly installed.

6. The auto-cutter will cut off any excess paper once properly installed. You may advance the paper by pressing the paper feed button located below the Power On/Off button on the top right hand side of the unit.

Warning: DO NOT PULL DIRECTLY ON THE PAPER WHEN THE PRINTER IS PRINTING! THIS MAY CAUSE PERMANENT DAMAGE TO THE PRINTER.

Paper Feed

Pressing the paper feed button will advance the paper roll. Each press of the button will advance the paper by one line.

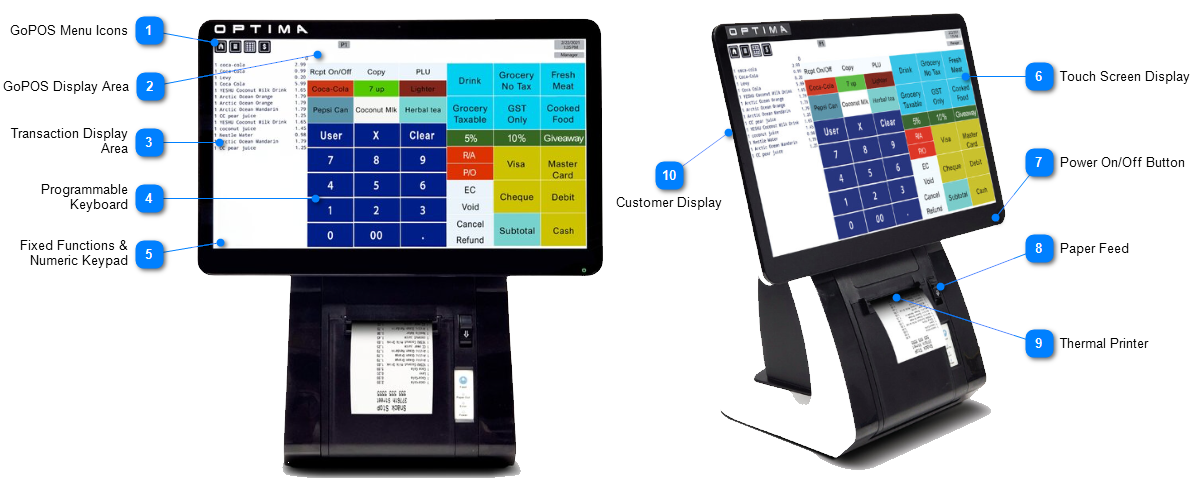

GoPOS Menu Icons

The Menu Icons allow you to navigate between screens and provide quick function access.

GoPOS Display Area

This area is used by GoPOS to display information on the current task, settings or modes of operation.

Transaction Display Area

The transaction display area will display each transaction, as well as any linked or ancillary transactions, as they are entered by the user. Transaction lines in this display area may be selected and highlighted by pressing directly on the line item. Highlighted line items may be removed by pressing the programmable "Delete" key .

Programmable Keyboard

The keyboard touch screen display is 100% configurable. This model can be easily configured to support keyboards with 66 or 88 keys displayed in landscape mode. There is however, no actual limitations to the number of programmable keys displayed on any of the APOS units.

Fixed Functions & Numeric Keypad

The fixed functions and numeric keypad may be hidden, as depicted in the image above, by setting Option 56 - "Hide Numeric Keypad" to true. The Transaction display area will be expanded to include this area when hidden.

Please note that many of the fixed functions are required to enter and complete transactions. It is assumed that if the fixed numeric keypad is hidden, the fixed function keys

required by the user will be added to the programmable keyboard in the Keys Maintenance module.

Touch Screen Display

15.6" (1920 x 1080p) Touch Screen

Power On/Off Button

Press and Hold the power button to turn the unit on or off. When turning the apos unit off, a pop up window will allow you to "Power off" or "Restart" the unit. Press anywhere outside of the pop-up window to cancel the operation.

Quickly pressing and releasing the on/off button will place the unit in sleep mode and display a blank screen. All of the touch screen functions will be disabled allowing you to wipe down the screen area. Pressing the power on/off button while in sleep mode, will turn the unit and touch screen functionality back on.

Paper Feed

Pressing the paper feed button will advance the paper roll. Each press of the button will advance the paper by one line.

Thermal Printer

Built-in 3 1/8" (80mm) Printer & Auto Cutter Printing Speed - 150mm/s

The APOS series thermal printers are equipped with an easy loading mechanism that provides fast paper roll replacement.

1. Press down on the printer release mechanism at the front of the unit to unlock and lower the lid.

2. Make sure that the printable part of the roll is facing the thermal printer. Usually this is the outside part of the roll. If you are unsure you can rub your fingernail on both sides of the paper. The side that leaves a mark will be the correct side.

3. Load the paper roll into the housing. The end of the roll must extend past the thermal printer and out of the unit.

4. Close the lid ensuring that the paper is properly centred. The unit will continuously beep until the paper is properly installed.

5. The auto-cutter will cut off any excess paper once properly installed. You may advance the paper by pressing the paper feed button located below the printer release mechanism.

Warning: DO NOT PULL DIRECTLY ON THE PAPER WHEN THE PRINTER IS PRINTING! THIS MAY CAUSE PERMANENT DAMAGE TO THE PRINTER.

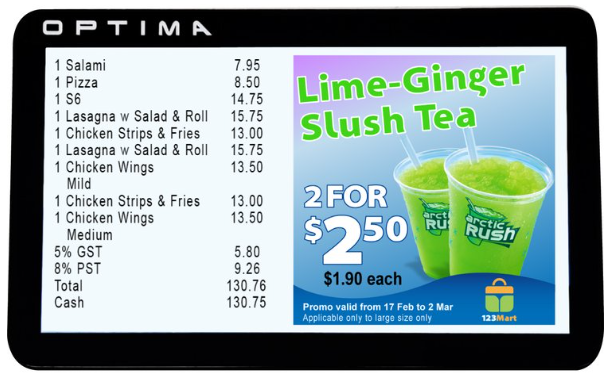

Customer Display

10.1" Color Screen (1024 x 600) The 10.1” adjustable customer display allows you to display all of the transaction details and advertisements at the same time.

When GoPOS is in register mode, the AP05 customer display is split in two sections. One section is used to display the current transaction and the other section is used to display advertisements. To use the advertisement feature,  you need to copy the images you want to display in the AP05 slide show folder.

ØCreate your advertisement image (bmp, gif, tif, png, jpg, etc) with recommended size of 512x600. Different sizes will work but may not display properly.

ØCopy image to a USB thumb drive.

ØInsert thumb Drive into USB port at back of AP05.

ØActivate Android Bars from GoPOS and open up Android File Manager.

ØNavigate to the thumb drive and select the image or images you wish to copy. Press in the check box to the left of the image to select one or more images. You may also select all files in the current folder by pressing on Select ALL in the Actions menu.

ØNavigate to the AP05 slide show folder by pressing Home, Internal Memory, opos, slideshow. Press Actions in the top menu and press Copy Selection Here to copy the file or files.

When you are in GoPOS Register Mode, the system will cycle through and display each image you copied into the AP05 slide show folder.

GoPOS Menu Icons

The Menu Icons allow you to navigate between screens and provide quick function access.

GoPOS Display Area

This area is used by GoPOS to display information on the current task, settings or modes of operation.

Transaction Display Area

The transaction display area will display each transaction, as well as any linked or ancillary transactions, as they are entered by the user. Transaction lines in this display area may be selected and highlighted by pressing directly on the line item. Highlighted line items may be removed by pressing the programmable "Delete" key .

Programmable Keyboard

The keyboard touch screen display is 100% configurable. This model can be easily configured to support keyboards with 66 or 88 keys displayed in landscape mode. There is however, no actual limitations to the number of programmable keys displayed on any of the APOS units.

Fixed Functions & Numeric Keypad

The fixed functions and numeric keypad may be hidden, as depicted in the image above, by setting Option 56 - "Hide Numeric Keypad" to true. The Transaction display area will be expanded to include this area when hidden.

Please note that many of the fixed functions are required to enter and complete transactions. It is assumed that if the fixed numeric keypad is hidden, the fixed function keys

required by the user will be added to the programmable keyboard in the Keys Maintenance module.

Touch Screen Display

11.6" (1366 x 768) Touch Screen

Power On/Off Button

Press and Hold the power button to turn the unit on or off. When turning the apos unit off, a pop up window will allow you to "Power off" or "Restart" the unit. Press anywhere outside of the pop-up window to cancel the operation.

Quickly pressing and releasing the on/off button will place the unit in sleep mode and display a blank screen. All of the touch screen functions will be disabled allowing you to wipe down the screen area. Pressing the power on/off button while in sleep mode, will turn the unit and touch screen functionality back on.

Paper Feed

Pressing the paper feed button will advance the paper roll. Each press of the button will advance the paper by one line.

Thermal Printer

Built-in 3 1/8" (80mm) Printer & Auto Cutter Printing Speed - 150mm/s

The APOS series thermal printers are equipped with an easy loading mechanism that provides fast paper roll replacement.

1. Press down on the printer release mechanism at the front of the unit to unlock and lower the lid.

2. Make sure that the printable part of the roll is facing the thermal printer. Usually this is the outside part of the roll. If you are unsure you can rub your fingernail on both sides of the paper. The side that leaves a mark will be the correct side.

3. Load the paper roll into the housing. The end of the roll must extend past the thermal printer and out of the unit.

4. Close the lid ensuring that the paper is properly centred. The unit will continuously beep until the paper is properly installed.

5. The auto-cutter will cut off any excess paper once properly installed. You may advance the paper by pressing the paper feed button located below the printer release mechanism.

Warning: DO NOT PULL DIRECTLY ON THE PAPER WHEN THE PRINTER IS PRINTING! THIS MAY CAUSE PERMANENT DAMAGE TO THE PRINTER.

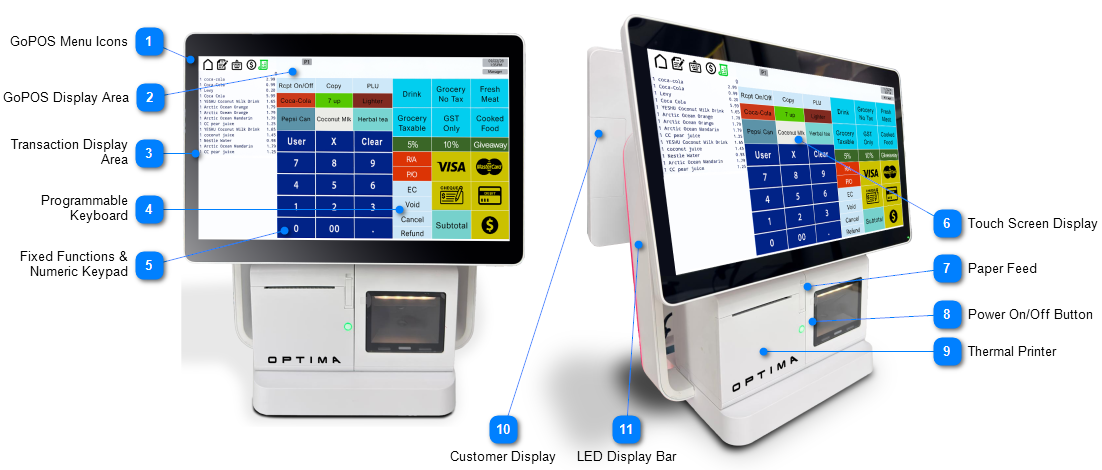

GoPOS Menu Icons

The Menu Icons allow you to navigate between screens and provide quick function access.

GoPOS Display Area

This area is used by GoPOS to display information on the current task, settings or modes of operation.

Transaction Display Area

The transaction display area will display each transaction, as well as any linked or ancillary transactions, as they are entered by the user. Transaction lines in this display area may be selected and highlighted by pressing directly on the line item. Highlighted line items may be removed by pressing the programmable "Delete" key .

Programmable Keyboard

The keyboard touch screen display is 100% configurable. This model can be easily configured to support keyboards with 66 or 88 keys displayed in landscape mode. There is however, no actual limitations to the number of programmable keys displayed on any of the APOS units.

Fixed Functions & Numeric Keypad

The fixed functions and numeric keypad may be hidden, as depicted in the image above, by setting Option 56 - "Hide Numeric Keypad" to true. The Transaction display area will be expanded to include this area when hidden.

Please note that many of the fixed functions are required to enter and complete transactions. It is assumed that if the fixed numeric keypad is hidden, the fixed function keys

required by the user will be added to the programmable keyboard in the Keys Maintenance module.

Touch Screen Display

15.6" (1920 x 1080p) Touch Screen

Paper Feed

Pressing the paper feed button will advance the paper roll. Each press of the button will advance the paper by one line.

Power On/Off Button

Press and Hold the power button to turn the unit on or off. When turning the apos unit off, a pop up window will allow you to "Power off" or "Restart" the unit. Press anywhere outside of the pop-up window to cancel the operation.

Quickly pressing and releasing the on/off button will place the unit in sleep mode and display a blank screen. All of the touch screen functions will be disabled allowing you to wipe down the screen area. Pressing the power on/off button while in sleep mode, will turn the unit and touch screen functionality back on.

Thermal Printer

Modular 3 1/8" (80mm) Printer & Auto Cutter Printing Speed - 150mm/s

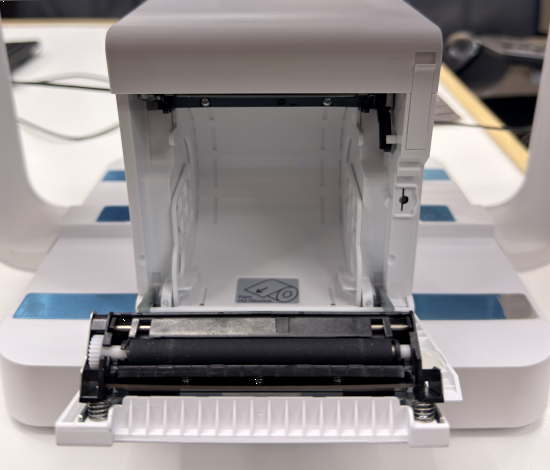

The APOS series thermal printers are equipped with an easy loading mechanism that provides fast paper roll replacement.

1. Press down on the printer release mechanism at the front of the unit to unlock and lower the lid.

2. Make sure that the printable part of the roll is facing the thermal printer. Usually this is the outside part of the roll. If you are unsure you can rub your fingernail on both sides of the paper. The side that leaves a mark will be the correct side.

3. Load the paper roll into the housing. The end of the roll must extend past the thermal printer and out of the unit.

4. Close the lid ensuring that the paper is properly centred. The unit will continuously beep until the paper is properly installed.

5. The auto-cutter will cut off any excess paper once properly installed. You may advance the paper by pressing the paper feed button located below the printer release mechanism.

Warning: DO NOT PULL DIRECTLY ON THE PAPER WHEN THE PRINTER IS PRINTING! THIS MAY CAUSE PERMANENT DAMAGE TO THE PRINTER.

Customer Display

15.6" (1920 x 1080p) Touch Screen

LED Display Bar

The AP06 comes equipped with an LED Display bar that can be programmed to provide clerk and customer feedback.
