Free Form Text Maintenance



Free Form Text Maintenance allows you to insert, update and delete free form text.

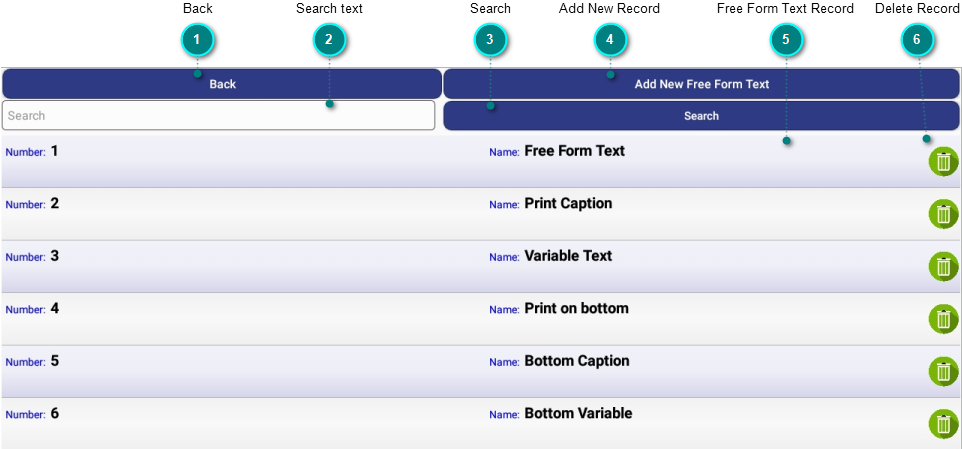

Back

Press Back to return to the GoPOS Home Menu.

Search text

Press in the search field to activate the android keyboard. Enter the text you wish to search for and press on the Search button. All records containing the entered text in the name field will be displayed.

Search

Press on this button to search the Name field for the entered search text. All records containing the search text in the name field will be displayed. Pressing on the Search button will also hide the android keyboard when activated.

Add New Record

Press on this button to add a new Free Form Text record.





Discount Id

Display only. When adding new records,  the next available Id value will be displayed.

Caption

Enter the free form text display name.

Options

Select one or more of the following options:



Print Caption

Select this option if you wish to print the caption on the receipt. You may select both print caption and variable text if you want both to be printed on the receipt.

Variable Text

Select this option if want to allow the user to enter text to be displayed on the receipt. Please note that if you do not select variable text, the caption will be printed on the receipt regardless of the print caption option.

Print On Bottom

Select this option if you wish to print the caption and/or variable text on the bottom of the receipt.



Print On

All printers and customer displays defined in Hardware Maintenance will be shown. Select one or more of the listed printers. At least one printer must be selected.

Print Font

Select one of the supported printer fonts.



1 - Font A Standard



2 - Font A Standard 2 x width & height

3 - Font A Standard 3 x width & height

4 - Font A Standard 4 x width & height

5 - Font A Standard 5 x width & height

6 - Font A Standard 6 x width & height

7 - Font A Standard 7 x width & height

8 - Font A Standard 8 x width & height

Back

Press "Back" to close the window and return to the previous screen without saving any changes.

Save

Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

Hide

Press "Hide" to hide the android keyboard when displayed.



Free Form Text Record

Each record will be displayed as an individual row. To edit or view the record details, press and hold on one of the rows.

Delete Record

Pressing on the trash can icon will delete the current row. A dialogue window will be displayed asking you to confirm the deletion.





Press on YES to delete the selected row or CANCEL to cancel the deletion.



Please note that once deleted, all references to this row will be lost.
