Endorsements Maintenance



Endorsements Maintenance allows you to insert, update and delete endorsement messages.

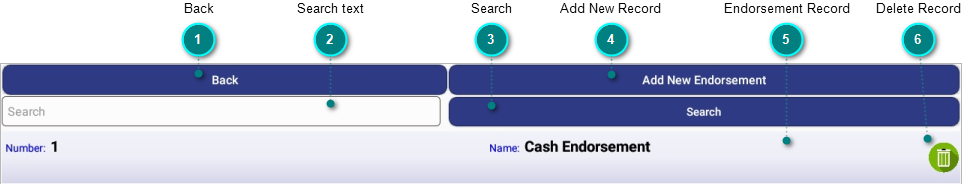

Back

Press Back to return to the GoPOS Home Menu.

Search text

Press in the search field to activate the android keyboard. Enter the text you wish to search for and press on the Search button. All records containing the entered text in the name field will be displayed.

Search

Press on this button to search the Name field for the entered search text. All records containing the search text in the name field will be displayed. Pressing on the Search button will also hide the android keyboard when activated.

Add New Record

Press on this button to add a new Discount/Surcharge record.





Endorsement Id

Display only. When adding new records,  the next available Id value will be displayed.

Caption

Enter the endorsement display name. Required field. Max 25 characters.

Message

Enter the text you wish to display on the receipt. Max 80 characters. The message will be printed every time a Tender is used that is linked to this endorsement.

Justify

Select one of the support text justifications. Left, Center or Right justification.

Font

Select one of the supported printer fonts.



Font A Standard



Font A Double Width

Font A Double Height

Font A Double Width and Double Height

Font B Standard

Font B Double Width

Font B Double Height

Font B Double Width and Double Height

Bold

Check this box if you wish to display the text in bold.

Underline

Check this box if you wish to display the text with underline.

Print On

All printers defined in the hardware maintenance screen will be displayed. Select one or more of the listed printers for the chosen endorsement. At least one printer must be chosen.

Delete Line

Click on the trash can button to delete the currently selected endorsement line.

Insert Line

Click on this button to add a new endorsement line. Each line can be displayed in its own font and may be printed in Bold, Underline and either in Left, Center or Right justification.

Back

Press "Back" to close the window and return to the previous screen without saving any changes.

Save

Press "Save" to close the window and return to the previous screen. All modifications made will be saved.

Hide

Press "Hide" to hide the android keyboard when displayed.



Endorsement Record

Each record will be displayed as an individual row. To edit or view the record details, press and hold on one of the rows.

Delete Record

Pressing on the trash can icon will delete the current row. A dialogue window will be displayed asking you to confirm the deletion.





Press on YES to delete the selected row or CANCEL to cancel the deletion.



Please note that once deleted, all references to this row will be lost.
